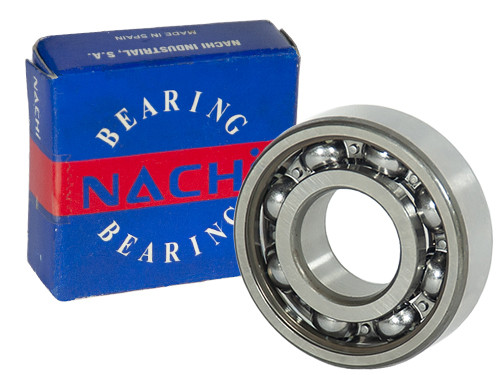

Nachi Kogellager 6309 Z E CM (45x100x25mm)
Product information
This product is made from Staal.
If you have any questions about the Nachi Kogellager 6309 Z E CM (45x100x25mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO751944
O.E.M. Nummer
Nein
Nachi, Kogellager, 6309, ZE, CM, 45x100x25mm.
Brand
Nachi
Typ
6309
Seal
Z (1 side metal shield)
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Nicht zutreffend
Boring
Nicht zutreffend
Details
Nein
Tolerance Class
C0 (Standard)
Asdiameter (mm)
45
Buitendiameter (mm)
100
Dikte (mm)
25
Vetsoort
Nicht zutreffend
Temperatuurbereik
-25º tot +120º C
Statisch Draaggetal (N)
32000
Dynamisch Draaggetal (N)
53000
Grenstoerental (tr/min)
7000
Referentietoerental (tr/min)
Nein
EAN
4991893606560
Gewicht
0.8200
