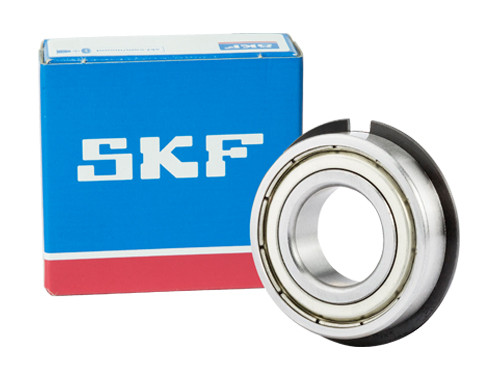

SKF Kogellager 6309 ZNR (45x100x25mm)
Product information
This product is made from Staal.
If you have any questions about the SKF Kogellager 6309 ZNR (45x100x25mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO917074
O.E.M. Nummer
Nein
kant, stalen, afdichting, SKF, Kogellager, 6309, ZNR, 45x100x25mm.
Brand
SKF
Typ
6309
Seal
Z (1 side metal shield)
Material
Staal
Materiaal Type
Nein
Buitenring
Groef in de buitenring met snapring
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Groef in buitenring met snapring (NR)
Tolerance Class
C0 (Standard)
Asdiameter (mm)
45
Buitendiameter (mm)
100
Dikte (mm)
25
Vetsoort
Nein
Temperatuurbereik
Nein
Statisch Draaggetal (N)
31500
Dynamisch Draaggetal (N)
55300
Grenstoerental (tr/min)
9500
Referentietoerental (tr/min)
15000
EAN
7316577303004
Gewicht
0.8510
