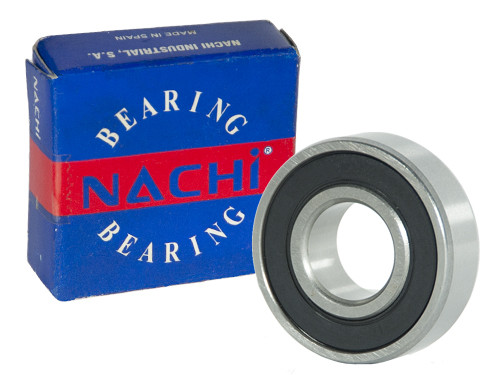

Nachi Kogellager 6309 2NSE9 C3 (45x100x25mm)
Product information
This product is made from Staal.
If you have any questions about the Nachi Kogellager 6309 2NSE9 C3 (45x100x25mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO157647
O.E.M. Nummer
Nein
Nachi, Kogellager, 6309, 2NSE, C3, 45x100x25mm.
Brand
Nachi
Typ
6309
Seal
2RS (2 sides rubber seal)
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Nicht zutreffend
Boring
Nicht zutreffend
Details
Nein
Tolerance Class
C3
Asdiameter (mm)
45
Buitendiameter (mm)
100
Dikte (mm)
25
Vetsoort
Nicht zutreffend
Temperatuurbereik
-25º tot +120º C
Statisch Draaggetal (N)
32000
Dynamisch Draaggetal (N)
53000
Grenstoerental (tr/min)
4800
Referentietoerental (tr/min)
Nein
EAN
4991893605808
Gewicht
0.8200
