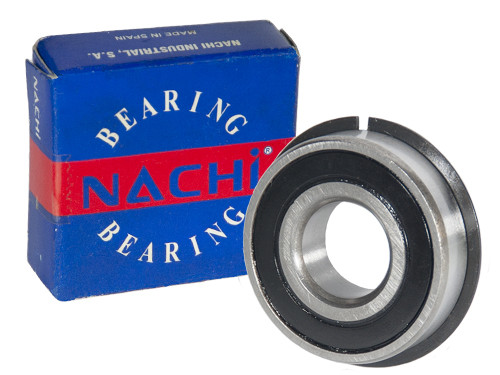

Nachi Kogellager 6309 2NSE9 NR CM (45x100x25mm)
Product information
This product is made from Staal.
If you have any questions about the Nachi Kogellager 6309 2NSE9 NR CM (45x100x25mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO964518
O.E.M. Nummer
Nein

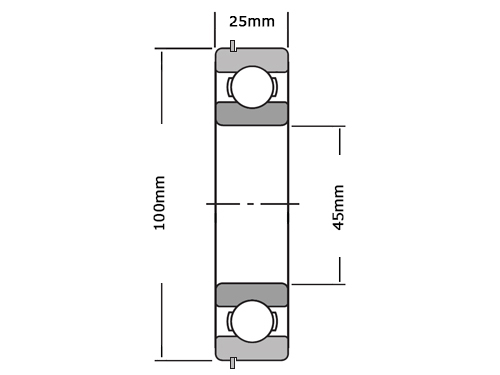

Nachi, Kogellager, 6309, 2NSE9, NR, CM, 45x100x25mm.
Brand
Nachi
Typ
6309
Seal
2RS (2 sides rubber seal)
Material
Staal
Materiaal Type
Nein
Buitenring
Groef in de buitenring met snapring
Kooi
Nein
Boring
Nein
Details
Nein
Tolerance Class
C0 (Standard)
Asdiameter (mm)
45
Buitendiameter (mm)
100
Dikte (mm)
25
Vetsoort
Nein
Temperatuurbereik
-25º tot +120º C
Statisch Draaggetal (N)
32000
Dynamisch Draaggetal (N)
53000
Grenstoerental (tr/min)
4800
Referentietoerental (tr/min)
Nein
EAN
4991893605846
Gewicht
0.8200
