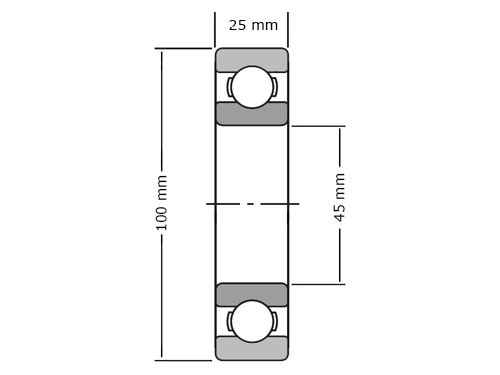

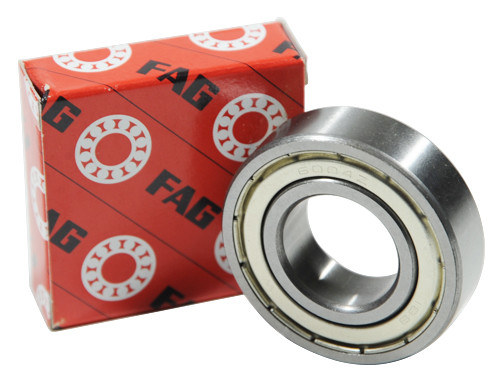

FAG Kogellager 6309 Z (45x100x25mm)
Product information
This product is made from Staal.
If you have any questions about the FAG Kogellager 6309 Z (45x100x25mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
This product is currently out of stock.
- Easy return
Technical data
Artikelposition
BO299707
O.E.M. Nummer
Nein
kant, stalen, afdichting, FAG, Kogellager, 6309, 45x100x25mm.
Brand
Fag
Typ
6309
Seal
Z (1 side metal shield)
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Nein
Tolerance Class
C0 (Standard)
Asdiameter (mm)
45
Buitendiameter (mm)
100
Dikte (mm)
25
Vetsoort
Nicht zutreffend
Temperatuurbereik
-30º tot +150º C
Statisch Draaggetal (N)
31500
Dynamisch Draaggetal (N)
58000
Grenstoerental (tr/min)
9500
Referentietoerental (tr/min)
8200
EAN
4047643307512
Gewicht
0.8400
