NTN Kogellager 6309 LLU NR 2AS (45x100x25mm)
Product information
This product is made from Staal.
If you have any questions about the NTN Kogellager 6309 LLU NR 2AS (45x100x25mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO326223
O.E.M. Nummer
Nein
kant, stalen, afdichting, NTN, Kogellager, 6309, LLU, NR, 2AS, 45x100x25mm.
Brand
NTN
Typ
6309
Seal
Z (1 side metal shield)
Material
Staal
Materiaal Type
Nein
Buitenring
Groef in de buitenring met snapring
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Nein
Tolerance Class
C0 (Standard)

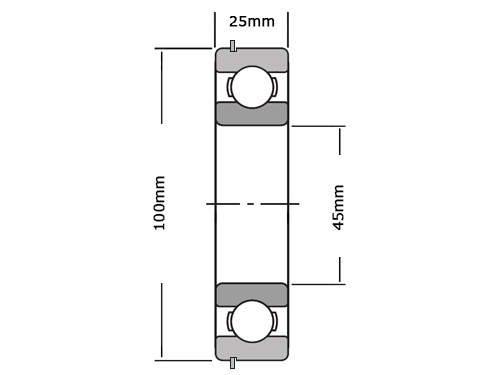

Asdiameter (mm)
45
Buitendiameter (mm)
100
Dikte (mm)
25
Vetsoort
Nein
Temperatuurbereik
-25º tot +110º C
Statisch Draaggetal (N)
32000
Dynamisch Draaggetal (N)
58500
Grenstoerental (tr/min)
4700
Referentietoerental (tr/min)
Nein
EAN
4547359577266
Gewicht
0.8480
