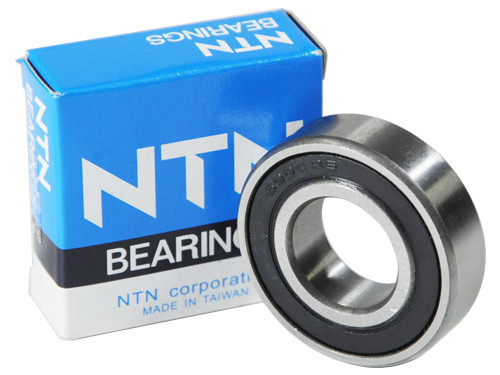

NTN Kogellager 6309 LU (45x100x25mm)
Product information
This product is made from Staal.
If you have any questions about the NTN Kogellager 6309 LU (45x100x25mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO205704
O.E.M. Nummer
Nein
RS, kant, kunststof, afdichting, NTN, Kogellager, 6309, LU, 45x100x25mm.
Brand
NTN
Typ
6309
Seal
RS (1 side rubber seal
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Nein
Tolerance Class
C0 (Standard)

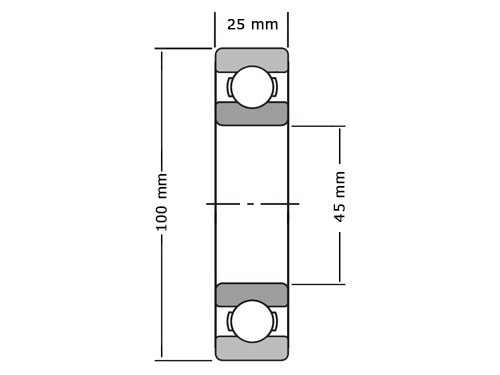

Asdiameter (mm)
45
Buitendiameter (mm)
100
Dikte (mm)
25
Vetsoort
Nicht zutreffend
Temperatuurbereik
-25º tot +110º C
Statisch Draaggetal (N)
32000
Dynamisch Draaggetal (N)
58500
Grenstoerental (tr/min)
4700
Referentietoerental (tr/min)
Nein
EAN
Nein
Gewicht
0.8050
