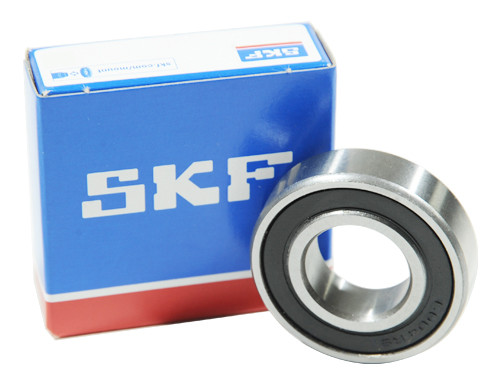

SKF Kogellager 6309 2RS1 TN9 HC5 C3 WT (45x100x25mm)
Product information
This product is made from Staal.
If you have any questions about the SKF Kogellager 6309 2RS1 TN9 HC5 C3 WT (45x100x25mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO423911
O.E.M. Nummer
Nein
SKF, Kogellager, 6309, 2RS1, TN9, HC5, C3, WT, 45x100x25mm.
Brand
SKF
Typ
6309
Seal
2RS (2 sides rubber seal)
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Polyamide
Boring
Cilindrisch
Details
Nein
Tolerance Class
C3
Asdiameter (mm)
45
Buitendiameter (mm)
100
Dikte (mm)
25
Vetsoort
Nicht zutreffend
Temperatuurbereik
Nicht zutreffend
Statisch Draaggetal (N)
31500
Dynamisch Draaggetal (N)
55300
Grenstoerental (tr/min)
4500
Referentietoerental (tr/min)
15000
EAN
7316571642369
Gewicht
0.7200
