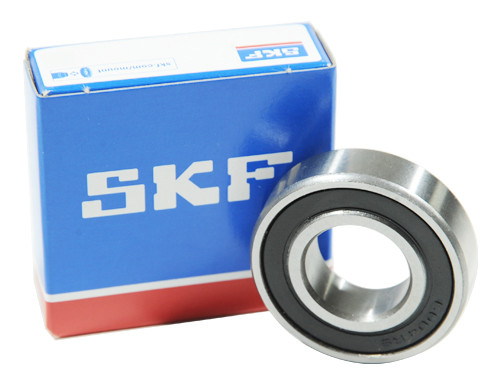

SKF Kogellager 6309 2RS1 C3 GJN (45x100x25mm)
Product information
This product is made from Staal.
If you have any questions about the SKF Kogellager 6309 2RS1 C3 GJN (45x100x25mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO352141
O.E.M. Nummer
Nein
kanten, kunststof, afdichting, SKF, Kogellager, 6309, 2RS1, C3, GJN, 45x100x25mm.
Brand
SKF
Typ
6309
Seal
2RS (2 sides rubber seal)
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Vet op polyureambasis -30 tot 150graden (GJN)
Tolerance Class
C0 (Standard)
Asdiameter (mm)
45
Buitendiameter (mm)
100
Dikte (mm)
25
Vetsoort
Nicht zutreffend
Temperatuurbereik
Nicht zutreffend
Statisch Draaggetal (N)
31500
Dynamisch Draaggetal (N)
55300
Grenstoerental (tr/min)
4500
Referentietoerental (tr/min)
15000
EAN
7316571544076
Gewicht
0.8470
