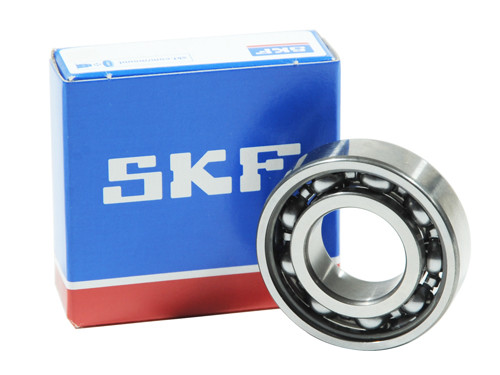

SKF Kogellager 6309 C3 VL0241 (45x100x25mm)
Product information
This product is made from Staal.
If you have any questions about the SKF Kogellager 6309 C3 VL0241 (45x100x25mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO645087
O.E.M. Nummer
Nein
Zonder, afdichting, SKF, Kogellager, 6309, C3, VL0241, 45x100x25mm.
Brand
SKF
Typ
6309
Seal
No seal
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Plaatstaal
Boring
Cilindrisch
Details
VL0241
Tolerance Class
C3
Asdiameter (mm)
45
Buitendiameter (mm)
100
Dikte (mm)
25
Vetsoort
Nicht zutreffend
Temperatuurbereik
Nicht zutreffend
Statisch Draaggetal (N)
31500
Dynamisch Draaggetal (N)
55300
Grenstoerental (tr/min)
9500
Referentietoerental (tr/min)
15000
EAN
7316573711612
Gewicht
0.8170
