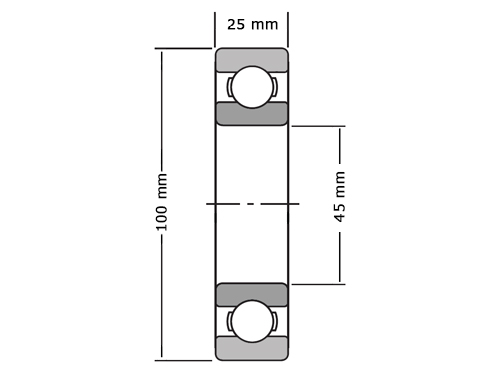

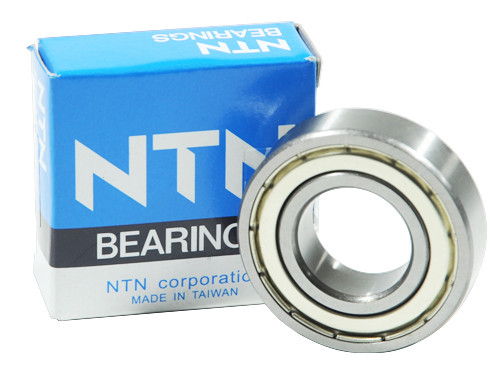

NTN Kogellager 6309 Z C3 (45x100x25mm)
Product information
This product is made from Staal.
If you have any questions about the NTN Kogellager 6309 Z C3 (45x100x25mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO798236
O.E.M. Nummer
Nein
kant, stalen, afdichting, NTN, Kogellager, 6309, C3, 45x100x25mm.
Brand
NTN
Typ
6309
Seal
Z (1 side metal shield)
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Nein
Tolerance Class
C3
Asdiameter (mm)
45
Buitendiameter (mm)
100
Dikte (mm)
25
Vetsoort
Nicht zutreffend
Temperatuurbereik
-40º tot +120º C
Statisch Draaggetal (N)
32000
Dynamisch Draaggetal (N)
58500
Grenstoerental (tr/min)
7000
Referentietoerental (tr/min)
Nein
EAN
4547359393415
Gewicht
0.8300
