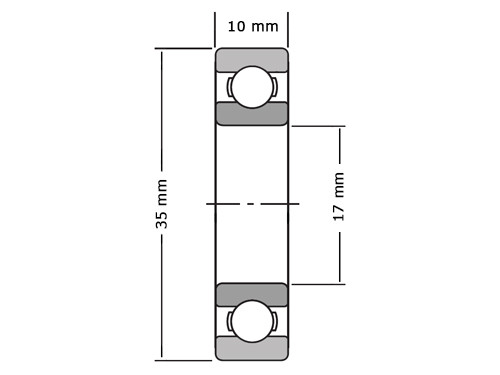

NSK Kogellager 6003 Z (17x35x10mm)
Product information
This product is made from Staal.
If you have any questions about the NSK Kogellager 6003 Z (17x35x10mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
- Easy return
Technical data

Artikelposition
BO782991
O.E.M. Nummer
Nein
kant, stalen, afdichting, NSK, Kogellager, 6003, 17x35x10mm.
Brand
NSK
Typ
6003
Seal
Z (1 side metal shield)
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Nein
Tolerance Class
C0 (Standard)
Asdiameter (mm)
17
Buitendiameter (mm)
35
Dikte (mm)
10
Vetsoort
Nicht zutreffend
Temperatuurbereik
-20° tot +150°C
Statisch Draaggetal (N)
3250
Dynamisch Draaggetal (N)
6600
Grenstoerental (tr/min)
24000
Referentietoerental (tr/min)
Nein
EAN
Nein
HS Code
8482 1090
Gewicht
0.0390
