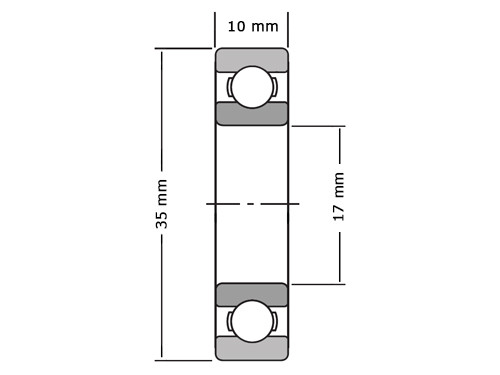

NSK Kogellager 6003 C3 (17x35x10mm)
Product information
This product is made from Staal.
If you have any questions about the NSK Kogellager 6003 C3 (17x35x10mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO247391
O.E.M. Nummer
Nein
Zonder, afdichting, NSK, Kogellager, 6003, C3, 17x35x10mm.
Brand
NSK
Typ
6003
Seal
No seal
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Nein
Tolerance Class
C3
Asdiameter (mm)
17
Buitendiameter (mm)
35
Dikte (mm)
10
Vetsoort
Nicht zutreffend
Temperatuurbereik
Nicht zutreffend
Statisch Draaggetal (N)
3250
Dynamisch Draaggetal (N)
6600
Grenstoerental (tr/min)
24000
Referentietoerental (tr/min)
Nein
EAN
Nein
Gewicht
0.0390
