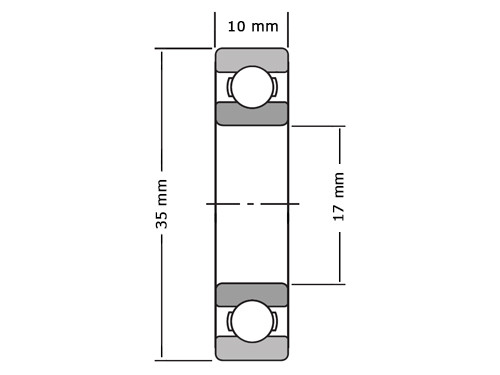

NSK Kogellager 6003 DDU (17x35x10mm)
Product information
This product is made from Staal.
If you have any questions about the NSK Kogellager 6003 DDU (17x35x10mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO232939
O.E.M. Nummer
Nein
2RS, kanten, kunststof, afdichting, NSK, Kogellager, 6003, DDU, 17x35x10mm.
Brand
NSK
Typ
6003
Seal
2RS (2 sides rubber seal)
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Nein
Tolerance Class
C0 (Standard)
Asdiameter (mm)
17
Buitendiameter (mm)
35
Dikte (mm)
10
Vetsoort
Nicht zutreffend
Temperatuurbereik
Nicht zutreffend
Statisch Draaggetal (N)
3250
Dynamisch Draaggetal (N)
6600
Grenstoerental (tr/min)
13000
Referentietoerental (tr/min)
Nein
EAN
029176062759
Gewicht
0.0390
