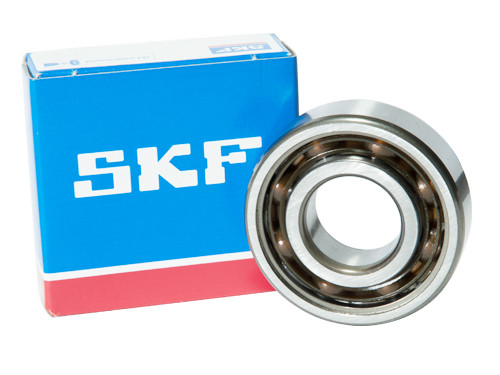

SKF Ball Bearing 6003TN9 C3
Product information
This product is made from Staal.
If you have any questions about the SKF Ball Bearing 6003TN9 C3, don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO240397
O.E.M. Nummer
Nein
Zonder, afdichting, SKF, Ball, Bearing, 6003TN9, C3.
Brand
SKF
Typ
6003
Seal
No seal
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Polyamide
Boring
Cilindrisch
Details
Glasvezel polyamide snap kooi (TN9)
Tolerance Class
C3
Asdiameter (mm)
17
Buitendiameter (mm)
35
Dikte (mm)
10
Vetsoort
Nicht zutreffend
Temperatuurbereik
Nicht zutreffend
Statisch Draaggetal (N)
3150
Dynamisch Draaggetal (N)
6370
Grenstoerental (tr/min)
28000
Referentietoerental (tr/min)
45000
EAN
7316570781328
Gewicht
0.0360
