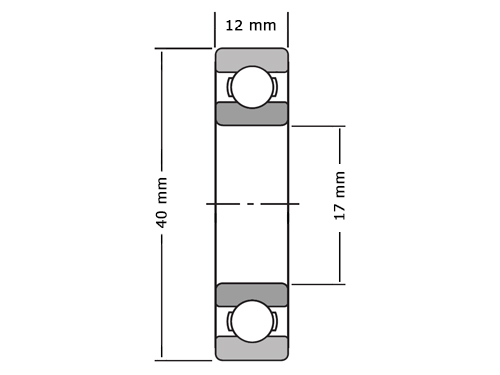

FAG Kogellager 6203 Z (17x40x12mm)
Product information
This product is made from Staal.
If you have any questions about the FAG Kogellager 6203 Z (17x40x12mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO415368
O.E.M. Nummer
Nein
kant, stalen, afdichting, FAG, Kogellager, 6203, 17x40x12mm.
Brand
Fag
Typ
6203
Seal
Z (1 side metal shield)
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Nein
Tolerance Class
C0 (Standard)
Asdiameter (mm)
17
Buitendiameter (mm)
40
Dikte (mm)
12
Vetsoort
Nicht zutreffend
Temperatuurbereik
-30º tot +120º C
Statisch Draaggetal (N)
4750
Dynamisch Draaggetal (N)
11000
Grenstoerental (tr/min)
22300
Referentietoerental (tr/min)
18100
EAN
4012801057875
Gewicht
0.0650
