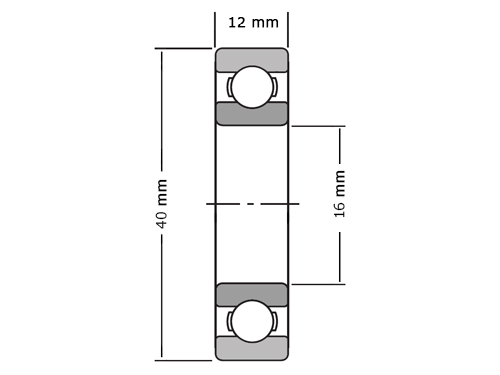

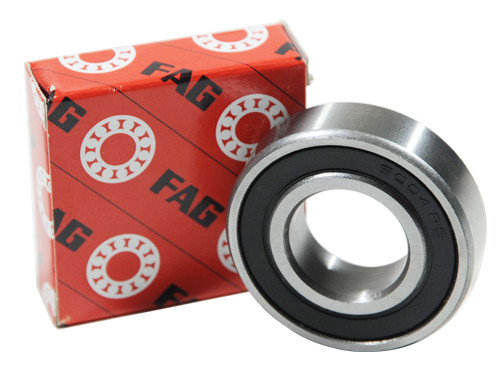

FAG Kogellager 6203 C HRS C3 (17x40x12mm)
Product information
This product is made from Staal.
If you have any questions about the FAG Kogellager 6203 C HRS C3 (17x40x12mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO412248
O.E.M. Nummer
Nein
RS, kant, kunststof, afdichting, FAG, Kogellager, 6203, HRS, C3, 17x40x12mm.
Brand
Fag
Typ
6203
Seal
RS (1 side rubber seal
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Nein
Tolerance Class
C3
Asdiameter (mm)
17
Buitendiameter (mm)
40
Dikte (mm)
12
Vetsoort
Nicht zutreffend
Temperatuurbereik
-30º tot +100º C
Statisch Draaggetal (N)
4750
Dynamisch Draaggetal (N)
11000
Grenstoerental (tr/min)
16900
Referentietoerental (tr/min)
18100
EAN
4012802361674
Gewicht
0.0670
