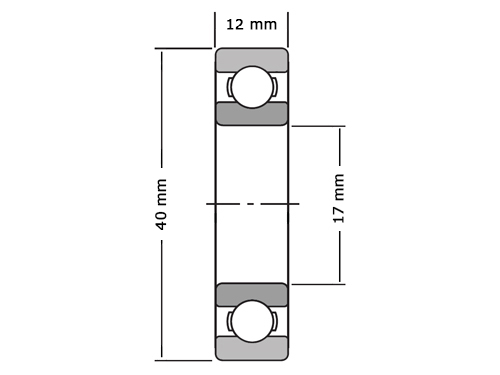

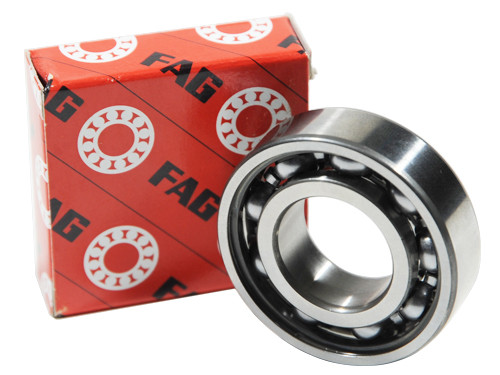

FAG Kogellager 6203 C TVH C3 (17x40x12mm)
Product information
This product is made from Staal.
If you have any questions about the FAG Kogellager 6203 C TVH C3 (17x40x12mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO101000
O.E.M. Nummer
Nein
FAG, Kogellager, 6203, TVH, C3, 17x40x12mm.
Brand
Fag
Typ
6203
Seal
No seal
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Nein
Tolerance Class
C3
Asdiameter (mm)
17
Buitendiameter (mm)
40
Dikte (mm)
12
Vetsoort
Nicht zutreffend
Temperatuurbereik
Nicht zutreffend
Statisch Draaggetal (N)
4750
Dynamisch Draaggetal (N)
11000
Grenstoerental (tr/min)
29000
Referentietoerental (tr/min)
18100
EAN
4012802361117
Gewicht
0.0610
