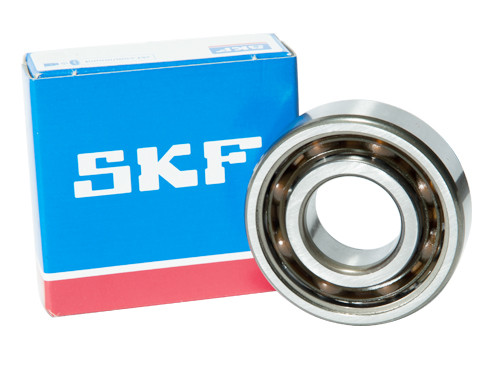

SKF Ball Bearing 6304TN9 C4
Product information
This product is made from Staal.
If you have any questions about the SKF Ball Bearing 6304TN9 C4, don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO346668
O.E.M. Nummer
Nein
Zonder, afdichting, SKF, Ball, Bearing, 6304TN9, C4.
Brand
SKF
Typ
6304
Seal
No seal
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Polyamide
Boring
Cilindrisch
Details
Glasvezel polyamide snap kooi (TN9)
Tolerance Class
C4
Asdiameter (mm)
20
Buitendiameter (mm)
52
Dikte (mm)
15
Vetsoort
Nicht zutreffend
Temperatuurbereik
Nicht zutreffend
Statisch Draaggetal (N)
7800
Dynamisch Draaggetal (N)
16800
Grenstoerental (tr/min)
19000
Referentietoerental (tr/min)
30000
EAN
7316577067418
Gewicht
0.1340
