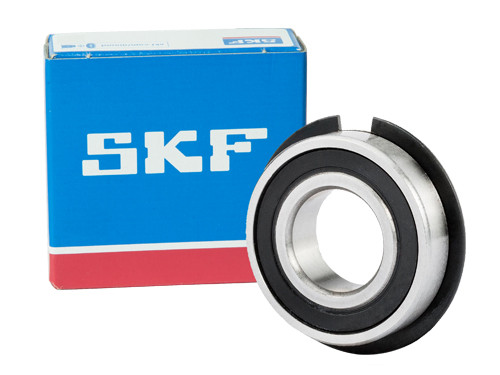

SKF Kogellager 6304 2RSH NR (20x52x15mm)
Product information
This product is made from Staal.
If you have any questions about the SKF Kogellager 6304 2RSH NR (20x52x15mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO769501
O.E.M. Nummer
Nein
2RS, kanten, kunststof, afdichting, SKF, Kogellager, 6304, 2RSH, NR, 20x52x15mm.
Brand
SKF
Typ
6304
Seal
2RS (2 sides rubber seal)
Material
Staal
Materiaal Type
Nein
Buitenring
Groef in de buitenring met snapring
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Groef in buitenring met snapring (NR)
Tolerance Class
C0 (Standard)
Asdiameter (mm)
20
Buitendiameter (mm)
52
Dikte (mm)
15
Vetsoort
Nein
Temperatuurbereik
Nein
Statisch Draaggetal (N)
7800
Dynamisch Draaggetal (N)
16800
Grenstoerental (tr/min)
9500
Referentietoerental (tr/min)
30000
EAN
7316573306092
Gewicht
0.1470
