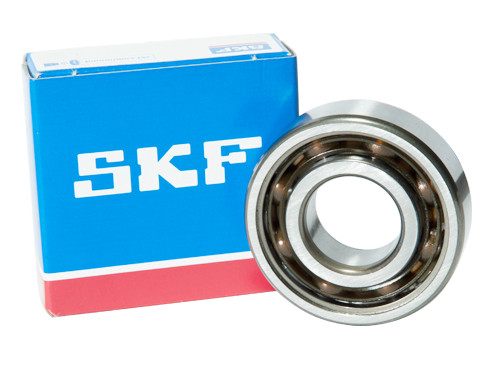

SKF Kogellager 6303 TN9 (17x47x14mm)
Product information
This product is made from Staal.
If you have any questions about the SKF Kogellager 6303 TN9 (17x47x14mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO885980
O.E.M. Nummer
Nein
Zonder, afdichting, SKF, Kogellager, 6303, TN9, 17x47x14mm.
Brand
SKF
Typ
6303
Seal
No seal
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Polyamide
Boring
Cilindrisch
Details
Glasvezel polyamide snap kooi (TN9)
Tolerance Class
C0 (Standard)
Asdiameter (mm)
17
Buitendiameter (mm)
47
Dikte (mm)
14
Vetsoort
Nicht zutreffend
Temperatuurbereik
Nicht zutreffend
Statisch Draaggetal (N)
6550
Dynamisch Draaggetal (N)
14300
Grenstoerental (tr/min)
22000
Referentietoerental (tr/min)
34000
EAN
7316577730374
Gewicht
0.1050
