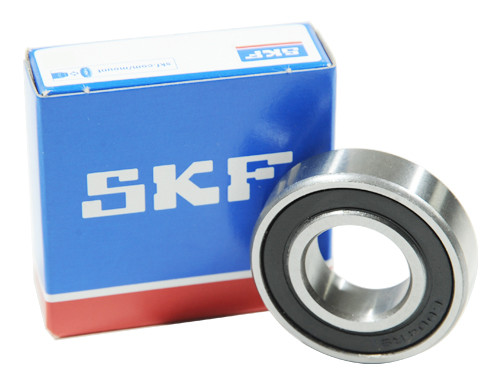

SKF Kogellager 6303 2RSH C3 GJN (17x47x14mm)
Product information
This product is made from Staal.
If you have any questions about the SKF Kogellager 6303 2RSH C3 GJN (17x47x14mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO705887
O.E.M. Nummer
Nein
kanten, kunststof, afdichting, SKF, Kogellager, 6303, 2RSH, C3, GJN, 17x47x14mm.
Brand
SKF
Typ
6303
Seal
2RS (2 sides rubber seal)
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Vet op polyureambasis -30 tot 150graden (GJN)
Tolerance Class
C0 (Standard)
Asdiameter (mm)
17
Buitendiameter (mm)
47
Dikte (mm)
14
Vetsoort
Nicht zutreffend
Temperatuurbereik
Nicht zutreffend
Statisch Draaggetal (N)
6550
Dynamisch Draaggetal (N)
14300
Grenstoerental (tr/min)
11000
Referentietoerental (tr/min)
34000
EAN
7316572075661
Gewicht
0.1120
