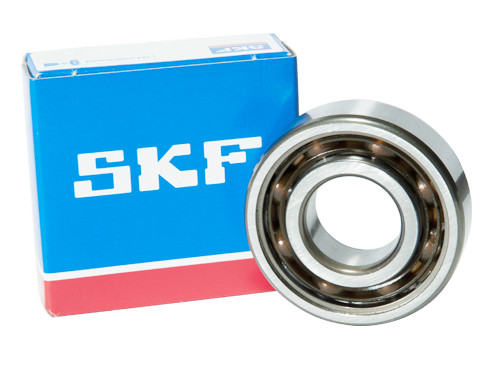

SKF Kogellager 6203 ETN9 C4 (17x40x12mm)
Product information
This product is made from Staal.
If you have any questions about the SKF Kogellager 6203 ETN9 C4 (17x40x12mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO421504
O.E.M. Nummer
Nein
Zonder, afdichting, SKF, Kogellager, 6203, ETN9, C4, 17x40x12mm.
Brand
SKF
Typ
6203
Seal
No seal
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Polyamide
Boring
Cilindrisch
Details
Glasvezel polyamide snap kooi (TN9)
Tolerance Class
C4
Asdiameter (mm)
17
Buitendiameter (mm)
40
Dikte (mm)
12
Vetsoort
Nicht zutreffend
Temperatuurbereik
Nicht zutreffend
Statisch Draaggetal (N)
4750
Dynamisch Draaggetal (N)
9950
Grenstoerental (tr/min)
24000
Referentietoerental (tr/min)
38000
EAN
7316570451481
Gewicht
0.0590
