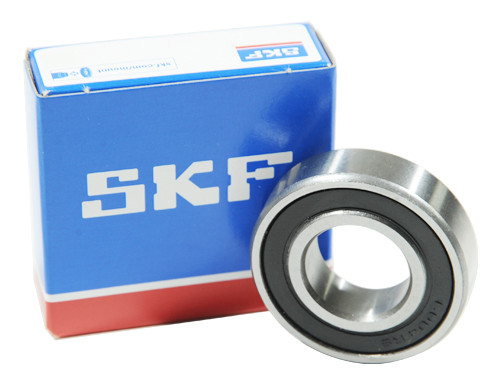

SKF Kogellager 6203 2RSH C4 (17x40x12mm)
Product information
This product is made from Staal.
If you have any questions about the SKF Kogellager 6203 2RSH C4 (17x40x12mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO315276
O.E.M. Nummer
Nein
2RS, kanten, kunststof, afdichting, SKF, Kogellager, 6203, 2RSH, C4, 17x40x12mm.
Brand
SKF
Typ
6203
Seal
2RS (2 sides rubber seal)
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Nein
Tolerance Class
C4
Asdiameter (mm)
17
Buitendiameter (mm)
40
Dikte (mm)
12
Vetsoort
Nicht zutreffend
Temperatuurbereik
Nicht zutreffend
Statisch Draaggetal (N)
4750
Dynamisch Draaggetal (N)
9950
Grenstoerental (tr/min)
12000
Referentietoerental (tr/min)
38000
EAN
7316571855943
Gewicht
0.0650
