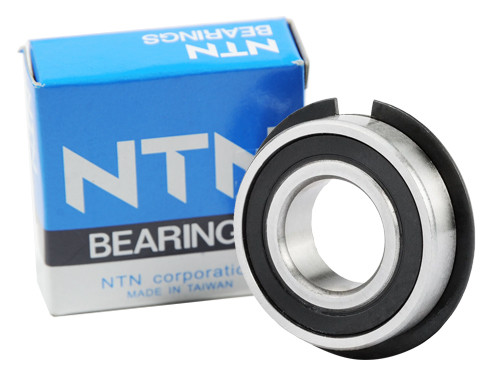

NTN Kogellager 6303 LLU NR 2AS (17x47x14mm)
Product information
This product is made from Staal.
If you have any questions about the NTN Kogellager 6303 LLU NR 2AS (17x47x14mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO421567
O.E.M. Nummer
Nein
Zonder, afdichting, NTN, Kogellager, 6303, LLU, NR, 2AS, 17x47x14mm.
Brand
NTN
Typ
6303
Seal
2RS (2 sides rubber seal)
Material
Staal
Materiaal Type
Nein
Buitenring
Groef in de buitenring met snapring
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Nein
Tolerance Class
C0 (Standard)
Asdiameter (mm)
17
Buitendiameter (mm)
47
Dikte (mm)
14
Vetsoort
Nein
Temperatuurbereik
-25º tot +110º C
Statisch Draaggetal (N)
6550
Dynamisch Draaggetal (N)
15000
Grenstoerental (tr/min)
11000
Referentietoerental (tr/min)
Nein
EAN
4547359383133
Gewicht
0.1180
