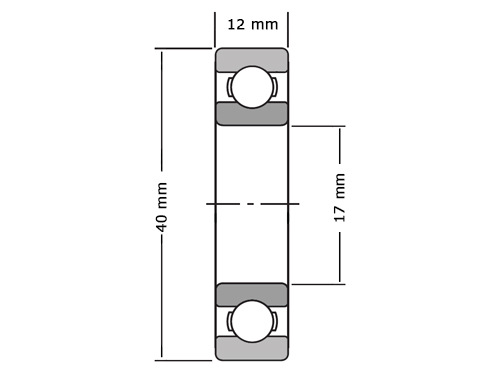

IBB Kogellager 6203 CE ZRPT Keramisch (17x40x12mm)
Product information
This product is made from ZRPT.
If you have any questions about the IBB Kogellager 6203 CE ZRPT Keramisch (17x40x12mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO190018
O.E.M. Nummer
Nein
IBB, Kogellager, 6203, CE, ZRPT, Keramisch, 17x40x12mm.
Brand
IBB
Typ
6203
Seal
No seal
Material
ZRPT
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Nicht zutreffend
Boring
Nicht zutreffend
Details
Nicht zutreffend
Tolerance Class
C0 (Standard)
Asdiameter (mm)
17
Buitendiameter (mm)
40
Dikte (mm)
12
Vetsoort
Nicht zutreffend
Temperatuurbereik
Nicht zutreffend
Statisch Draaggetal (N)
2880
Dynamisch Draaggetal (N)
5720
Grenstoerental (tr/min)
17000
Referentietoerental (tr/min)
Nicht zutreffend
EAN
Nein
Gewicht
0.0430
