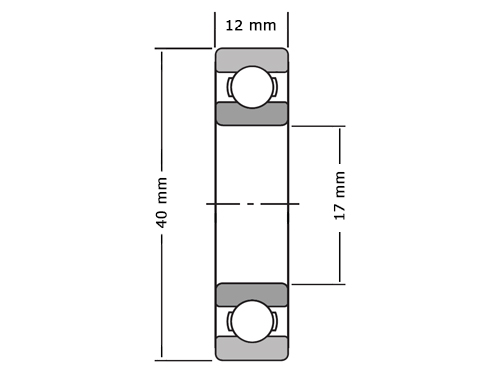

FAG Kogellager 6203 C (17x40x12mm)
Product information
This product is made from Staal.
If you have any questions about the FAG Kogellager 6203 C (17x40x12mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO569277
O.E.M. Nummer
Nein
Zonder, afdichting, FAG, Kogellager, 6203, 17x40x12mm.
Brand
Fag
Typ
6203
Seal
No seal
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Nein
Tolerance Class
C0 (Standard)
Asdiameter (mm)
17
Buitendiameter (mm)
40
Dikte (mm)
12
Vetsoort
Nicht zutreffend
Temperatuurbereik
-30º tot +120º C
Statisch Draaggetal (N)
4750
Dynamisch Draaggetal (N)
11000
Grenstoerental (tr/min)
29000
Referentietoerental (tr/min)
18100
EAN
4012802361087
Gewicht
0.0670
