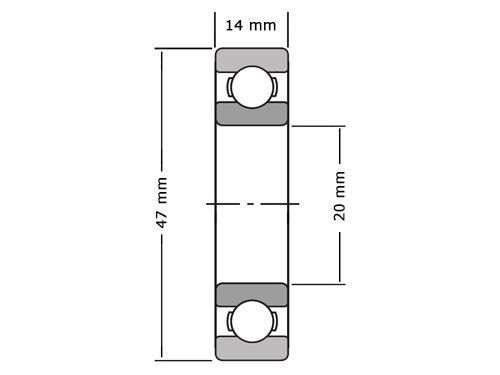

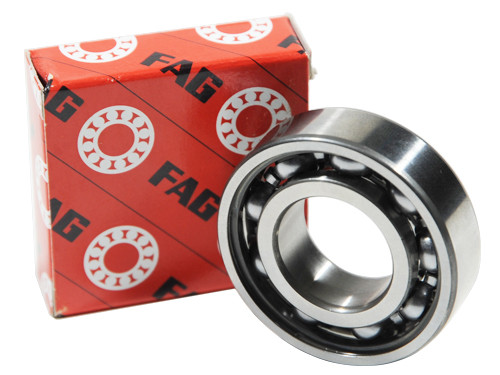

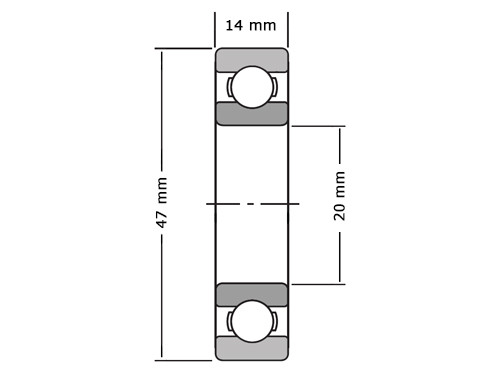

FAG Kogellager 6204 C TVH C3 (20x47x14mm)
Product information
This product is made from Staal.
If you have any questions about the FAG Kogellager 6204 C TVH C3 (20x47x14mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO228134
O.E.M. Nummer
Nein
Zonder, afdichting, FAG, Kogellager, 6204, TVH, C3, 20x47x14mm.
Brand
Fag
Typ
6204
Seal
No seal
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Polyamide
Boring
Cilindrisch
Details
Nein
Tolerance Class
C3
Asdiameter (mm)
20
Buitendiameter (mm)
47
Dikte (mm)
14
Vetsoort
Nicht zutreffend
Temperatuurbereik
-30º tot +120º C
Statisch Draaggetal (N)
6600
Dynamisch Draaggetal (N)
14700
Grenstoerental (tr/min)
24300
Referentietoerental (tr/min)
16300
EAN
4012802383614
Gewicht
0.1000
