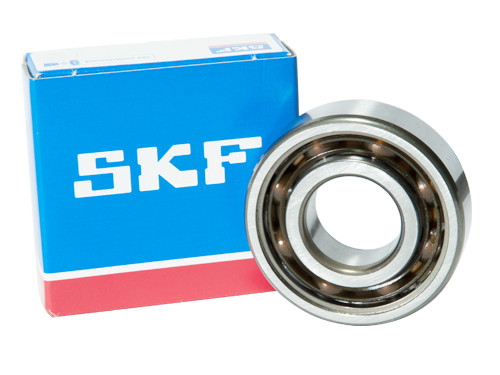

SKF Kogellager 6204 E TN9 C3H (20x47x14mm)
Product information
This product is made from Staal.
If you have any questions about the SKF Kogellager 6204 E TN9 C3H (20x47x14mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO252688
O.E.M. Nummer
Nein
Zonder, afdichting, SKF, Kogellager, 6204, TN9, C3H, 20x47x14mm.
Brand
SKF
Typ
6204
Seal
No seal
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Polyamide
Boring
Cilindrisch
Details
Glasvezel polyamide snap kooi (TN9)
Tolerance Class
C3
Asdiameter (mm)
20
Buitendiameter (mm)
47
Dikte (mm)
14
Vetsoort
Nicht zutreffend
Temperatuurbereik
Nicht zutreffend
Statisch Draaggetal (N)
6550
Dynamisch Draaggetal (N)
13500
Grenstoerental (tr/min)
20000
Referentietoerental (tr/min)
38000
EAN
7316571076959
Gewicht
0.0950
