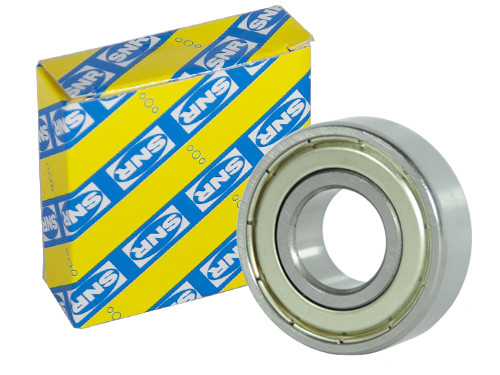

SNR kogellager 6309 ZZ C3 (45x100x25mm)
Product information
This product is made from Staal.
If you have any questions about the SNR kogellager 6309 ZZ C3 (45x100x25mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO169779
O.E.M. Nummer
Nein
SNR, kogellager, 6309, ZZ, C3, 45x100x25mm.
Brand
SNR
Typ
6309
Seal
ZZ (2 sides metal shield)
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Nein
Tolerance Class
C3
Asdiameter (mm)
45
Buitendiameter (mm)
100
Dikte (mm)
27
Vetsoort
Nicht zutreffend
Temperatuurbereik
Nicht zutreffend
Statisch Draaggetal (N)
31900
Dynamisch Draaggetal (N)
58500
Grenstoerental (tr/min)
9100
Referentietoerental (tr/min)
8300
EAN
3413520149949
Gewicht
0.8240
