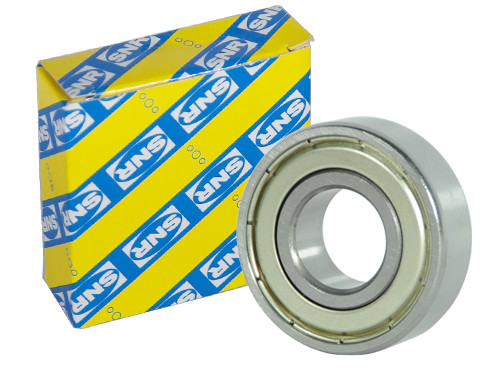

SNR Kogellager 6309 FT150 ZZ (45x100x25mm)
Product information
This product is made from Staal.
If you have any questions about the SNR Kogellager 6309 FT150 ZZ (45x100x25mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO688770
O.E.M. Nummer
Nein
SNR, Kogellager, 6309, FT150, ZZ, 45x100x25mm.
Brand
SNR
Typ
6309
Seal
ZZ (2 sides metal shield)
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Nein
Tolerance Class
C0 (Standard)
Asdiameter (mm)
45
Buitendiameter (mm)
100
Dikte (mm)
25
Vetsoort
Nicht zutreffend
Temperatuurbereik
Nicht zutreffend
Statisch Draaggetal (N)
31900
Dynamisch Draaggetal (N)
58500
Grenstoerental (tr/min)
6800
Referentietoerental (tr/min)
8300
EAN
3413520352967
Gewicht
0.8600
