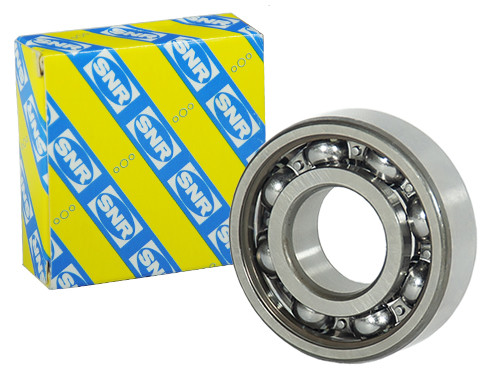

SNR kogellager 6224 C3 (120x215x40mm)
Product information
This product is made from Staal.
If you have any questions about the SNR kogellager 6224 C3 (120x215x40mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO882466
O.E.M. Nummer
Nein
SNR, kogellager, 6224, C3, 120x215x40mm.
Brand
SNR
Typ
6224
Seal
No seal
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Nein
Tolerance Class
C3
Asdiameter (mm)
120
Buitendiameter (mm)
215
Dikte (mm)
40
Vetsoort
Nicht zutreffend
Temperatuurbereik
Nicht zutreffend
Statisch Draaggetal (N)
132000
Dynamisch Draaggetal (N)
164000
Grenstoerental (tr/min)
4800
Referentietoerental (tr/min)
4200
EAN
3413520139193
Gewicht
5.2600
