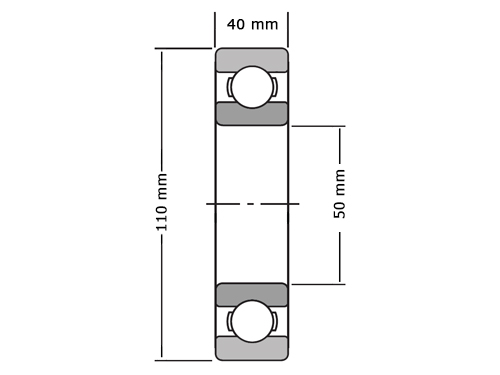

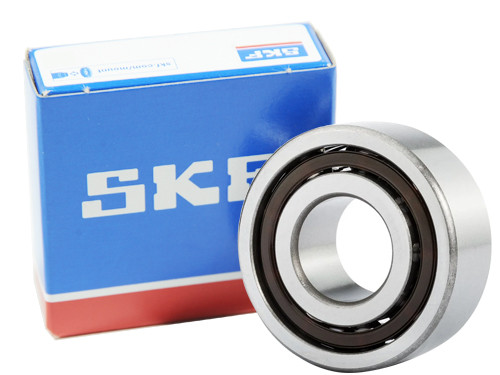

SKF Kogellager Tweerijig 4310 A TN9 (50x110x40mm)
Product information
This product is made from Staal.
If you have any questions about the SKF Kogellager Tweerijig 4310 A TN9 (50x110x40mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO116500
O.E.M. Nummer
Nein
SKF, Kogellager, Tweerijig, 4310, ATN9, 50x110x40mm.
Brand
SKF
Typ
4310
Seal
No seal
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Polyamide
Boring
Cilindrisch
Details
Glasvezel polyamide snap kooi (TN9)
Tolerance Class
C0 (Standard)
Asdiameter (mm)
50
Buitendiameter (mm)
110
Dikte (mm)
40
Vetsoort
Nicht zutreffend
Temperatuurbereik
Nicht zutreffend
Statisch Draaggetal (N)
69500
Dynamisch Draaggetal (N)
81900
Grenstoerental (tr/min)
5300
Referentietoerental (tr/min)
10000
EAN
7316577004628
Gewicht
1.6500
