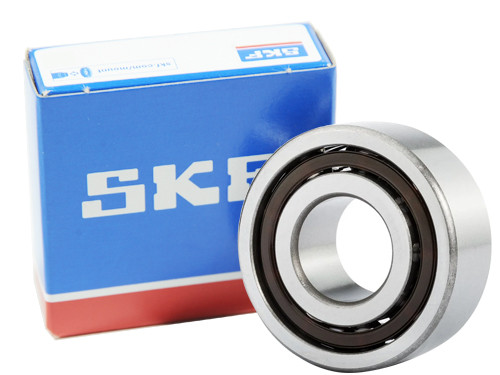

SKF Kogellager Tweerijig 4203 A TN9 (17x40x16mm)
Product information
This product is made from Staal.
If you have any questions about the SKF Kogellager Tweerijig 4203 A TN9 (17x40x16mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO545952
O.E.M. Nummer
Nein
SKF, Kogellager, Tweerijig, 4203, ATN9, 17x40x16mm.
Brand
SKF
Typ
4203
Seal
No seal
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Polyamide
Boring
Cilindrisch
Details
Nein
Tolerance Class
C0 (Standard)
Asdiameter (mm)
17
Buitendiameter (mm)
40
Dikte (mm)
16
Vetsoort
Nicht zutreffend
Temperatuurbereik
Nicht zutreffend
Statisch Draaggetal (N)
9500
Dynamisch Draaggetal (N)
14800
Grenstoerental (tr/min)
15000
Referentietoerental (tr/min)
28000
EAN
7316570079425
Gewicht
0.0880
