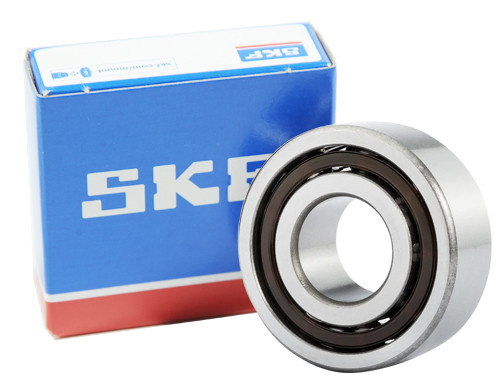

SKF Kogellager Tweerijig 4201 A TN9 (12x32x14mm)
Product information
This product is made from Staal.
If you have any questions about the SKF Kogellager Tweerijig 4201 A TN9 (12x32x14mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO796042
O.E.M. Nummer
Nein
SKF, Kogellager, Tweerijig, 4201, ATN9, 12x32x14mm.
Brand
SKF
Typ
4201
Seal
Nein
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Polyamide
Boring
Cilindrisch
Details
Glasvezel polyamide snap kooi (TN9)
Tolerance Class
C0 (Standard)
Asdiameter (mm)
12
Buitendiameter (mm)
32
Dikte (mm)
14
Vetsoort
Nicht zutreffend
Temperatuurbereik
Nicht zutreffend
Statisch Draaggetal (N)
6200
Dynamisch Draaggetal (N)
10600
Grenstoerental (tr/min)
20000
Referentietoerental (tr/min)
36000
EAN
7316577004383
Gewicht
0.0510
