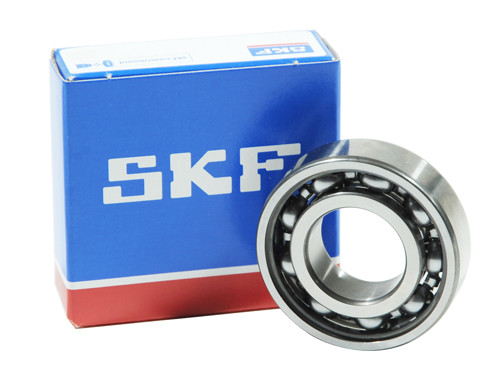

SKF Kogellager 6320 C3 VL0241 (100x215x47mm)
Product information
This product is made from Staal.
If you have any questions about the SKF Kogellager 6320 C3 VL0241 (100x215x47mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO710728
O.E.M. Nummer
Nein
kanten, stalen, afdichting, SKF, Kogellager, 6320, C3, VL0241, 100x215x47mm.
Brand
SKF
Typ
6320
Seal
ZZ (2 sides metal shield)
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Plaatstaal
Boring
Cilindrisch
Details
VL0241
Tolerance Class
C0 (Standard)
Asdiameter (mm)
100
Buitendiameter (mm)
215
Dikte (mm)
47
Vetsoort
Nicht zutreffend
Temperatuurbereik
Nicht zutreffend
Statisch Draaggetal (N)
14000
Dynamisch Draaggetal (N)
174000
Grenstoerental (tr/min)
4300
Referentietoerental (tr/min)
6700
EAN
7316571664057
Gewicht
6.9840
