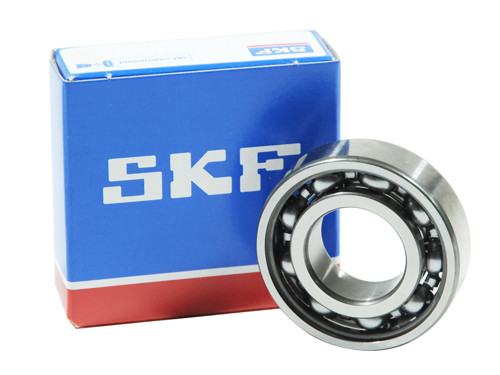

SKF Kogellager 6224 C4 (120x215x40mm)
Product information
This product is made from Staal.
If you have any questions about the SKF Kogellager 6224 C4 (120x215x40mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO391425
O.E.M. Nummer
Nein
Zonder, afdichting, SKF, Kogellager, 6224, C4, 120x215x40mm.
Brand
SKF
Typ
6224
Seal
No seal
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Nein
Tolerance Class
C4
Asdiameter (mm)
120
Buitendiameter (mm)
215
Dikte (mm)
40
Vetsoort
Nicht zutreffend
Temperatuurbereik
Nicht zutreffend
Statisch Draaggetal (N)
118000
Dynamisch Draaggetal (N)
146000
Grenstoerental (tr/min)
4000
Referentietoerental (tr/min)
6300
EAN
7316577065612
Gewicht
5.6000
