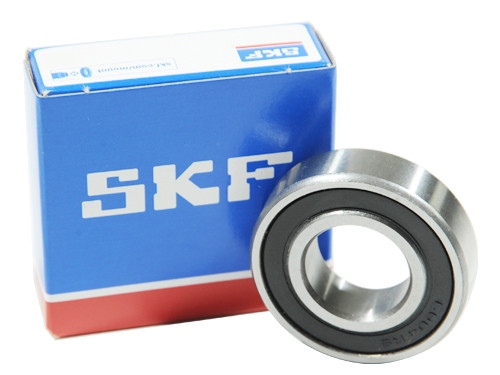

SKF Kogellager 6204 2RSL TN9 C3 VT162 (20x47x14mm)
Product information
This product is made from Staal.
If you have any questions about the SKF Kogellager 6204 2RSL TN9 C3 VT162 (20x47x14mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO932189
O.E.M. Nummer
Nein
2RS, kanten, kunststof, afdichting, SKF, Kogellager, 6204, 2RSL, TN9, C3, VT162, 20x47x14mm.
Brand
SKF
Typ
6204
Seal
2RS (2 sides rubber seal)
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Polyamide
Boring
Cilindrisch
Details
Glasvezel polyamide snap kooi (TN9)
Tolerance Class
C3
Asdiameter (mm)
20
Buitendiameter (mm)
47
Dikte (mm)
14
Vetsoort
Nicht zutreffend
Temperatuurbereik
Nicht zutreffend
Statisch Draaggetal (N)
6550
Dynamisch Draaggetal (N)
13500
Grenstoerental (tr/min)
17000
Referentietoerental (tr/min)
38000
EAN
7316571824628
Gewicht
0.1030
