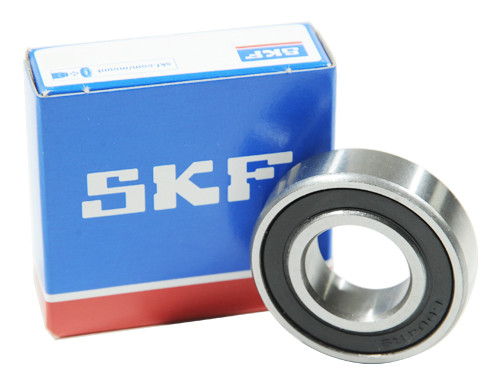

SKF Kogellager 6203 2RSH C3 GJN (17x40x12mm)
Product information
This product is made from Staal.
If you have any questions about the SKF Kogellager 6203 2RSH C3 GJN (17x40x12mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO519177
O.E.M. Nummer
Nein
kanten, kunststof, afdichting, SKF, Kogellager, 6203, 2RSH, C3, GJN, 17x40x12mm.
Brand
SKF
Typ
6203
Seal
2RS (2 sides rubber seal)
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Vet op polyureambasis -30 tot 150graden (GJN)
Tolerance Class
C0 (Standard)
Asdiameter (mm)
17
Buitendiameter (mm)
40
Dikte (mm)
12
Vetsoort
Nicht zutreffend
Temperatuurbereik
Nicht zutreffend
Statisch Draaggetal (N)
4750
Dynamisch Draaggetal (N)
9950
Grenstoerental (tr/min)
12000
Referentietoerental (tr/min)
38000
EAN
7316571856056
Gewicht
0.0650
