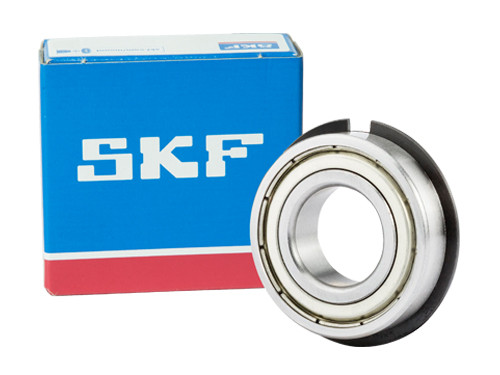

SKF Kogellager 214 Z NR (70x125x24mm)
Product information
This product is made from Staal.
If you have any questions about the SKF Kogellager 214 Z NR (70x125x24mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO630090
O.E.M. Nummer
Nein

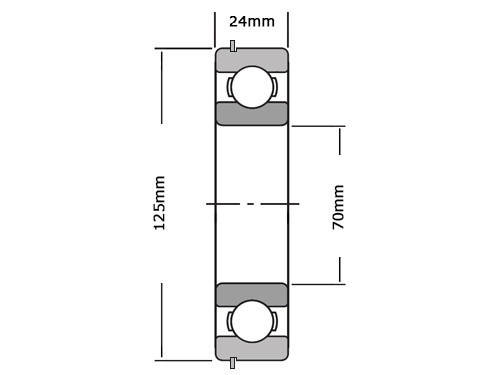

SKF, Kogellager, 214, NR, 70x125x24mm.
Brand
SKF
Typ
214
Seal
No seal
Material
Staal
Materiaal Type
Nein
Buitenring
Groef in de buitenring met snapring
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Nein
Tolerance Class
C0 (Standard)
Asdiameter (mm)
70
Buitendiameter (mm)
134.7
Dikte (mm)
24
Vetsoort
Nein
Temperatuurbereik
Nein
Statisch Draaggetal (N)
65500
Dynamisch Draaggetal (N)
66000
Grenstoerental (tr/min)
5600
Referentietoerental (tr/min)
9500
EAN
7316576679995
Gewicht
1.2000
