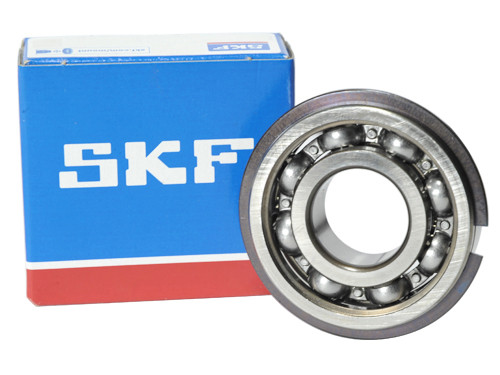

SKF Kogellager 209 NR C3 (45x85x19mm)
Product information
This product is made from Staal.
If you have any questions about the SKF Kogellager 209 NR C3 (45x85x19mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO683293
O.E.M. Nummer
Nein
SKF, Kogellager, 209, NR, C3, 45x85x19mm.
Brand
SKF
Typ
209
Seal
No seal
Material
Staal
Materiaal Type
Nein
Buitenring
Groef in de buitenring met snapring
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Nein
Tolerance Class
C3
Asdiameter (mm)
45
Buitendiameter (mm)
91.6
Dikte (mm)
19
Vetsoort
Nein
Temperatuurbereik
Nein
Statisch Draaggetal (N)
30000
Dynamisch Draaggetal (N)
35200
Grenstoerental (tr/min)
8500
Referentietoerental (tr/min)
14000
EAN
7316570351729
Gewicht
0.4350
