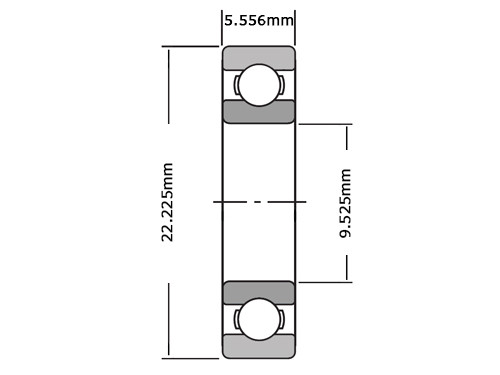

SKF Kogellager EE3 TN9 (9.525x22.225x5.556mm)
Product information
If you have any questions about the SKF Kogellager EE3 TN9 (9.525x22.225x5.556mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO445438
O.E.M. Nummer
Nein
SKF, Kogellager, EE3, TN9, 9.525x22.225x5.556mm.
Brand
SKF
Typ
EE3
Seal
No seal
Material
Nein
Materiaal Type
Nein
Buitenring
Zonder flens/groef
Kooi
Polyamide
Boring
Cilindrisch
Details
Nein
Tolerance Class
C0 (Standard)
Asdiameter (mm)
9.5
Buitendiameter (mm)
22.23
Dikte (mm)
5.556
Vetsoort
Nein
Temperatuurbereik
Nein
Statisch Draaggetal (N)
1400
Dynamisch Draaggetal (N)
3320
Grenstoerental (tr/min)
43000
Referentietoerental (tr/min)
60000
EAN
7316577042057
Gewicht
0.0080
