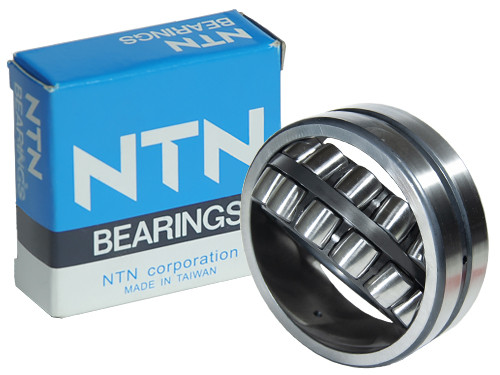

NTN Tonlager Zelfinstellend 24036 Cilindrisch EAW33 (180x280x100mm)
Product information
If you have any questions about the NTN Tonlager Zelfinstellend 24036 Cilindrisch EAW33 (180x280x100mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO990619
NTN, Tonlager, Zelfinstellend, 24036, Cilindrisch, EAW33, 180x280x100mm.
O.E.M. Nummer
Nein
Brand
NTN
Typ
Nein
Seal
No seal
Tolerance Class
C0 (Standard)
Asdiameter - d (mm)
180
Buitendiameter - D (mm)
280
Dikte - B (mm)
100
r min (mm)
2.1
Vetsoort
Nicht zutreffend
Kooi
Nicht zutreffend
Boring
Nicht zutreffend
Statisch Draaggetal (N)
1830000
Dynamisch Draaggetal (N)
1280000
Grenstoerental (tr/min)
1500
Referentietoerental (tr/min)
Nicht zutreffend
Gewicht
27.5000
EAN
3413521056987
