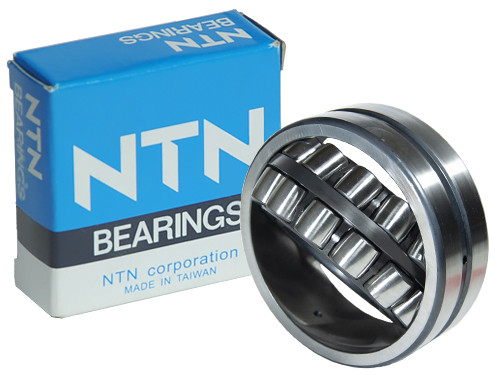

NTN Tonlager Zelfinstellend 24020 Cilindrisch EAW33 (100x150x50mm)
Product information
If you have any questions about the NTN Tonlager Zelfinstellend 24020 Cilindrisch EAW33 (100x150x50mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO380721
NTN, Tonlager, Zelfinstellend, 24020, Cilindrisch, EAW33, 100x150x50mm.
O.E.M. Nummer
Nein
Brand
NTN
Typ
Nein
Seal
No seal
Tolerance Class
C0 (Standard)
Asdiameter - d (mm)
100
Buitendiameter - D (mm)
150
Dikte - B (mm)
50
r min (mm)
1.5
Vetsoort
Nicht zutreffend
Kooi
Nicht zutreffend
Boring
Nicht zutreffend
Statisch Draaggetal (N)
479000
Dynamisch Draaggetal (N)
361000
Grenstoerental (tr/min)
4100
Referentietoerental (tr/min)
Nicht zutreffend
Gewicht
2.8300
EAN
3413521056680
