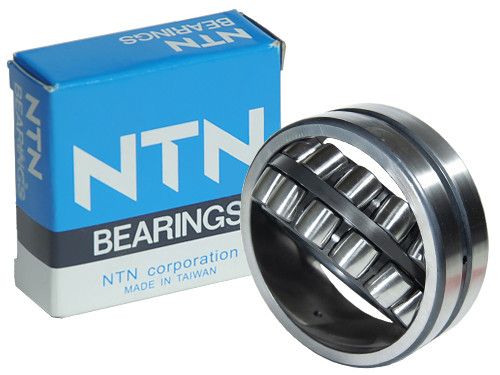

NTN Tonlager Zelfinstellend 23136 Conisch EAKW33 C3 (180x300x96mm)
Product information
If you have any questions about the NTN Tonlager Zelfinstellend 23136 Conisch EAKW33 C3 (180x300x96mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO207653
NTN, Tonlager, Zelfinstellend, 23136, Conisch, EAKW33, C3, 180x300x96mm.
O.E.M. Nummer
Nein
Brand
NTN
Typ
Nein
Seal
No seal
Tolerance Class
C0 (Standard)

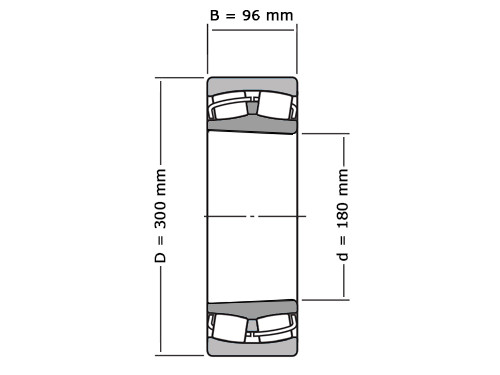

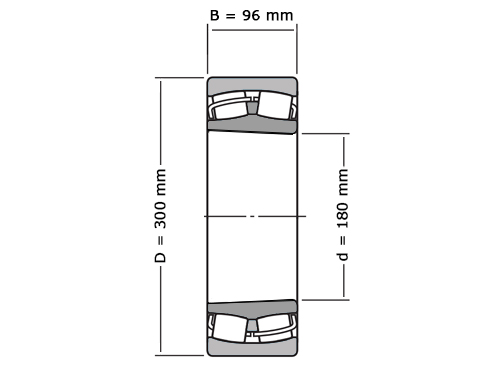

Asdiameter - d (mm)
180
Buitendiameter - D (mm)
300
Dikte - B (mm)
96
r min (mm)
3
Vetsoort
Nicht zutreffend
Kooi
Nicht zutreffend
Boring
Nicht zutreffend
Statisch Draaggetal (N)
1960000
Dynamisch Draaggetal (N)
1490000
Grenstoerental (tr/min)
2100
Referentietoerental (tr/min)
1600
Gewicht
26.5000
EAN
3413521058721
