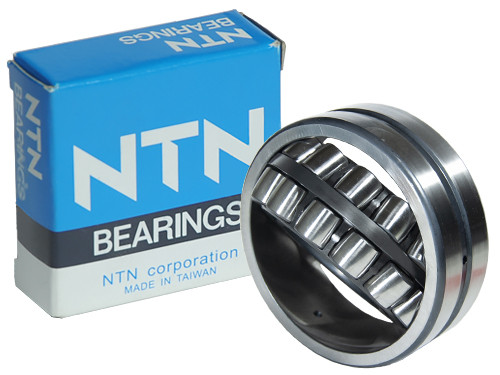

NTN Tonlager Zelfinstellend 23038 Cilindrisch EAW33 C3 (190x290x75mm)
Product information
If you have any questions about the NTN Tonlager Zelfinstellend 23038 Cilindrisch EAW33 C3 (190x290x75mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO313614
NTN, Tonlager, Zelfinstellend, 23038, Cilindrisch, EAW33, C3, 190x290x75mm.
O.E.M. Nummer
Nein
Brand
NTN
Typ
Nein
Seal
No seal
Tolerance Class
C0 (Standard)

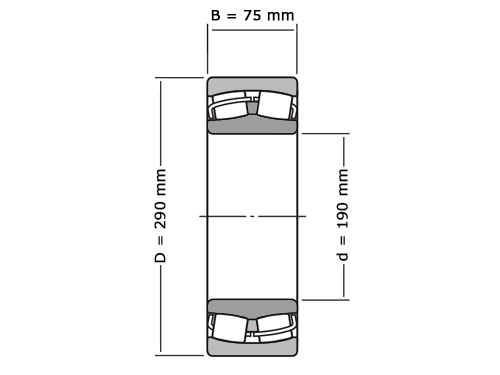

Asdiameter - d (mm)
190
Buitendiameter - D (mm)
290
Dikte - B (mm)
75
r min (mm)
2.1
Vetsoort
Nicht zutreffend
Kooi
Nicht zutreffend
Boring
Nicht zutreffend
Statisch Draaggetal (N)
1570000
Dynamisch Draaggetal (N)
1140000
Grenstoerental (tr/min)
1900
Referentietoerental (tr/min)
1900
Gewicht
17.7000
EAN
3413521059315
