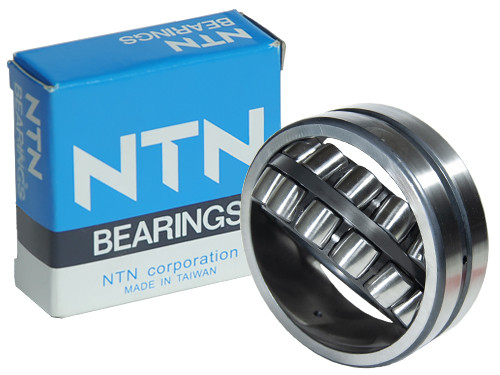

NTN Tonlager Zelfinstellend 22328 Conisch EAKW33 C3 (140x300x102mm)
Product information
If you have any questions about the NTN Tonlager Zelfinstellend 22328 Conisch EAKW33 C3 (140x300x102mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO542989
NTN, Tonlager, Zelfinstellend, 22328, Conisch, EAKW33, C3, 140x300x102mm.
O.E.M. Nummer
Nein
Brand
NTN
Typ
Nein
Seal
No seal
Tolerance Class
C0 (Standard)

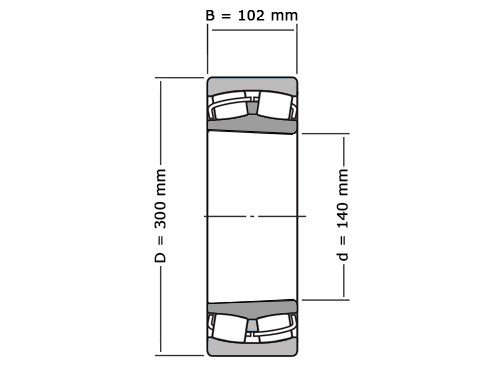

Asdiameter - d (mm)
140
Buitendiameter - D (mm)
300
Dikte - B (mm)
102
r min (mm)
4
Vetsoort
Nicht zutreffend
Kooi
Nicht zutreffend
Boring
Nicht zutreffend
Statisch Draaggetal (N)
1720000
Dynamisch Draaggetal (N)
1540000
Grenstoerental (tr/min)
2200
Referentietoerental (tr/min)
1600
Gewicht
35.5000
EAN
3413521059971
