NTN Kogellager Zelfinstellend 1320 Cilindrisch SK (100x215x47mm)
Product information
If you have any questions about the NTN Kogellager Zelfinstellend 1320 Cilindrisch SK (100x215x47mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO185138
NTN, Kogellager, Zelfinstellend, 1320, Cilindrisch, SK, 100x215x47mm.
O.E.M. Nummer
Nein
Brand
NTN
Typ
1320
Seal
No seal
Tolerance Class
C0 (Standard)

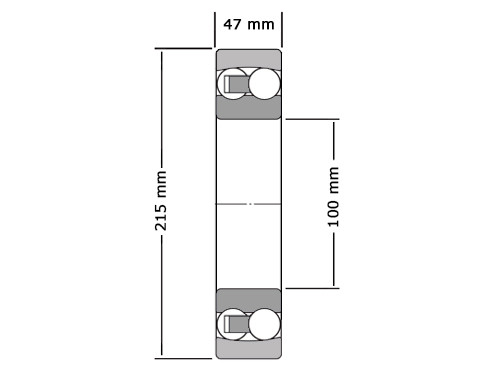

Asdiameter - d (mm)
100
Buitendiameter - D (mm)
215
Dikte - B (mm)
47
r min (mm)
3
Vetsoort
Nicht zutreffend
Kooi
Nicht zutreffend
Boring
Nicht zutreffend
Statisch Draaggetal (N)
44500
Dynamisch Draaggetal (N)
140000
Grenstoerental (tr/min)
2800
Referentietoerental (tr/min)
Nicht zutreffend
Gewicht
8.3500
EAN
4547359514575
