NTN Kogellager Zelfinstellend 1316 Cilindrisch SK (80x170x39mm)
Product information
If you have any questions about the NTN Kogellager Zelfinstellend 1316 Cilindrisch SK (80x170x39mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO682194

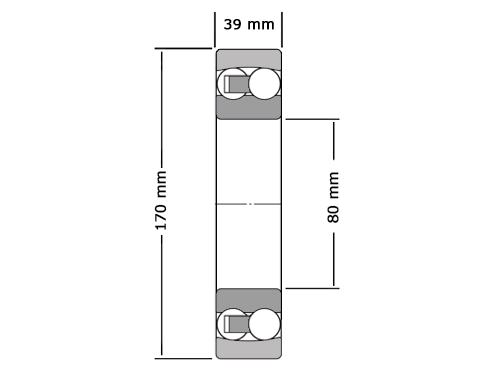

NTN, Kogellager, Zelfinstellend, 1316, Cilindrisch, SK, 80x170x39mm.
O.E.M. Nummer
Nein
Brand
NTN
Typ
1316
Seal
No seal
Tolerance Class
C0 (Standard)
Asdiameter - d (mm)
80
Buitendiameter - D (mm)
170
Dikte - B (mm)
39
r min (mm)
2.1
Vetsoort
Nicht zutreffend
Kooi
Nicht zutreffend
Boring
Nicht zutreffend
Statisch Draaggetal (N)
33000
Dynamisch Draaggetal (N)
89000
Grenstoerental (tr/min)
3600
Referentietoerental (tr/min)
Nicht zutreffend
Gewicht
4.1700
EAN
4547359257274
