NTN Kogellager Zelfinstellend 1220 Cilindrisch S (100x180x34mm)
Product information
If you have any questions about the NTN Kogellager Zelfinstellend 1220 Cilindrisch S (100x180x34mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO436700
NTN, Kogellager, Zelfinstellend, 1220, Cilindrisch, 100x180x34mm.
O.E.M. Nummer
Nein
Brand
NTN
Typ
1220
Seal
No seal
Tolerance Class
C0 (Standard)

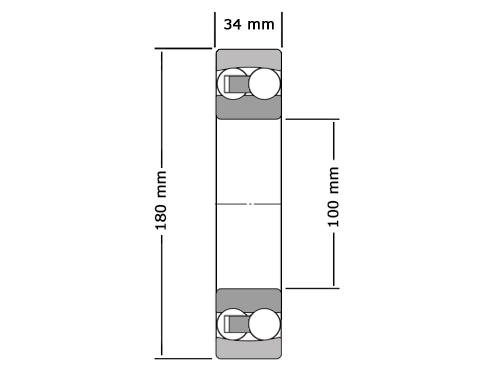

Asdiameter - d (mm)
100
Buitendiameter - D (mm)
180
Dikte - B (mm)
34
r min (mm)
2.1
Vetsoort
Nicht zutreffend
Kooi
Nicht zutreffend
Boring
Nicht zutreffend
Statisch Draaggetal (N)
29700
Dynamisch Draaggetal (N)
69500
Grenstoerental (tr/min)
3200
Referentietoerental (tr/min)
Nicht zutreffend
Gewicht
3.8000
EAN
4547359256130
